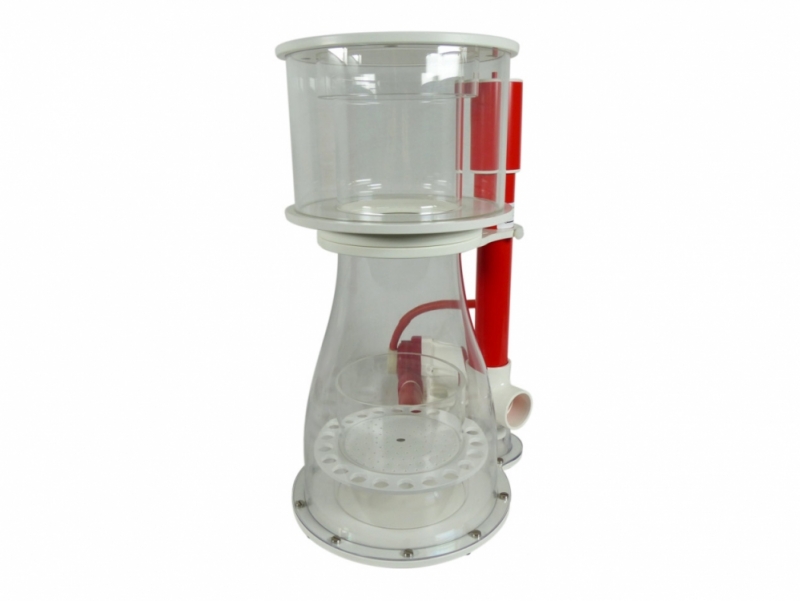

Bubble King® Double Cone 250 + RDX DC 24V

for aquariums/tanks up to 396 gallons (1.500 liter)

hard facts Bubble King^® Double Cone 250 RDX:
660 GPH (2.500 l/h) Air - 1.720 GPH (6.500 l/h) Water = 1 Pump RD X 6500 DC 24V
Base plate: 11.81ʺ x 14.57ʺ / height ~ 23.23ʺ  (30 cm x 37 cm / height ~ 59 cm)
Water level: ~ 200 mm up to ~ 250 mm
Weight skimmer: 7,5 kg inclusive pump

Technical data Bubble King^® Double Cone 250 RDX:
Skimmer-pump: Red Dragon^® X 6500
Delivery rate: 500-2.500 l/h  Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68  control unit: IP 66

Dimension skimmer without pump:
11.81ʺ wide / 14.57ʺ length / ~ 23.23ʺ height
Dimension skimmer with pump:
14.96ʺ wide / 17.32ʺ length / ~ 23.23ʺ height

Dimension skimmer without pump:
300 mm wide / 370 mm length / ~ 590 mm height
Dimension skimmer with pump:
380 mm wide / 440 mm length / ~ 590 mm height

FOLLOWING ASAP Data_sheet_and_spare_parts.pdf    Operating_and_maintenance_manual.pdf

Red Dragon^® X pump 60Watt 2.500 l/h

Technical data Red Dragon^® X pump 60 Watt / 2.500 l/h air intake:
Skimmer-pump: Red Dragon^® X 6500
Delivery rate: 500-2.500 l/h  Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from ~ 8W up to 63W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 45 mm
Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height

  RDX Skimmer Pump - Operating_and_maintenance_manual.pdf

• Saltwater resistant M4 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless DC-delivery pump with external power electronics
• High efficient technology, Sine Wave for very quiet running
• Inlet and Outlet complete with DIN connection, compact dimensions
• Easy usage and maintenance, low risk of calcification
• compact design against vibrations and oscillation
• CE conformity, developed and built
• high quality touchscreen display with feeding function
  (protection against dry-running, over heating, over voltage, blocking etc.)
• included in the scope of delivery:
  • Pump with 2m supply line
  • Controller with 1,5m supply line
  • Power plug with 1,5m supply line / rubber connector
  • Nozzle with Air- and Ozone connection
  • Manual German/English
