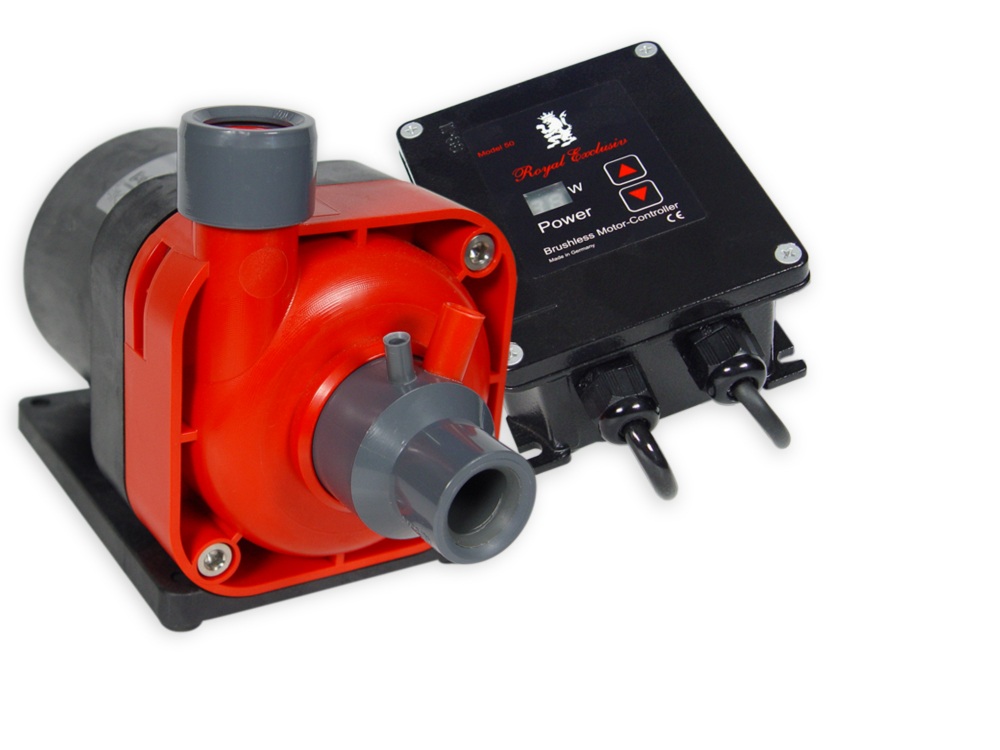

Red Dragon® 3 Speedy 50 Watt / 1500 l/h

Red Dragon^® 3 Speedy pump 50 Watt / 1500 l/h
for Bubble King^® Double Cone 180 + 200

Technical data  Red Dragon^® 3 Speedy pump 50 Watt / 1500 l/h air intake:
max. 50 Watt/h, adjustable 15-50 Watt
speed adjustable Brushless DC pump
Watt- and Percent- Display
Intake side: Nozzle with ozone & air plug
Pressure side: reducing ring Ø 32 mm
Delivery rate: from 450 to max. 1500 l/h air-intake // from 900 to max. 3000 l/h water-intake
Operating voltage: 110 Volt 60 Hz  (also in 230V/50Hz available)
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,5 kg
Height of intake side: center 60 mm
Dimension pump: 100 mm wide / 160 mm length / ~ 140 mm height
Dimension control unit: 120 mm wide / 160 mm length / ~ 65 mm height

Suitable for:
Bubble King^® Double Cone 180 + 200
incl. pump-table

Data_sheet_and_spare_parts.pdf   Operating_and_maintenance_manual.pdf

• Saltwater resistant M6 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless dc-delivery pump with grouted power electronics
• High efficient technology "Made in Germany"
• compact dimensions
• High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
• Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
• Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
• Heavy and massive craftsmanship against vibrations and oscillation
• CE conformity, developed and built according to VDE guidelines
