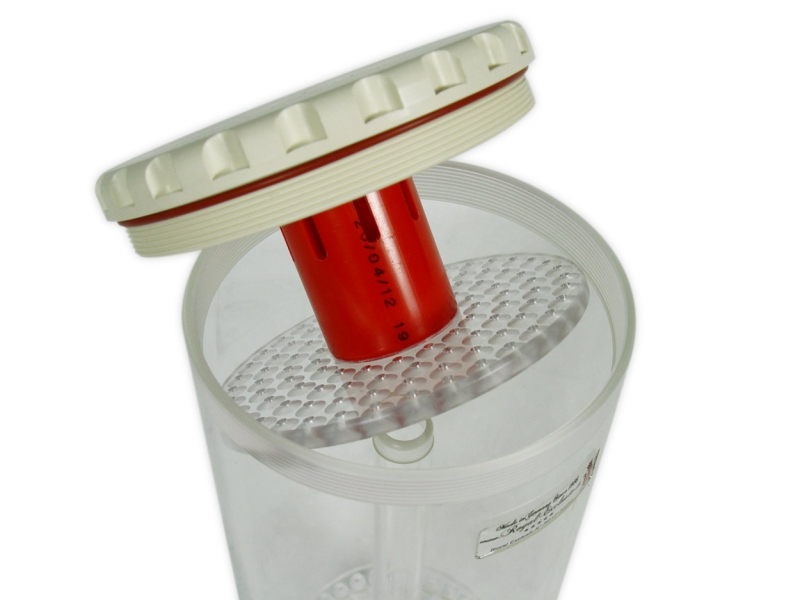

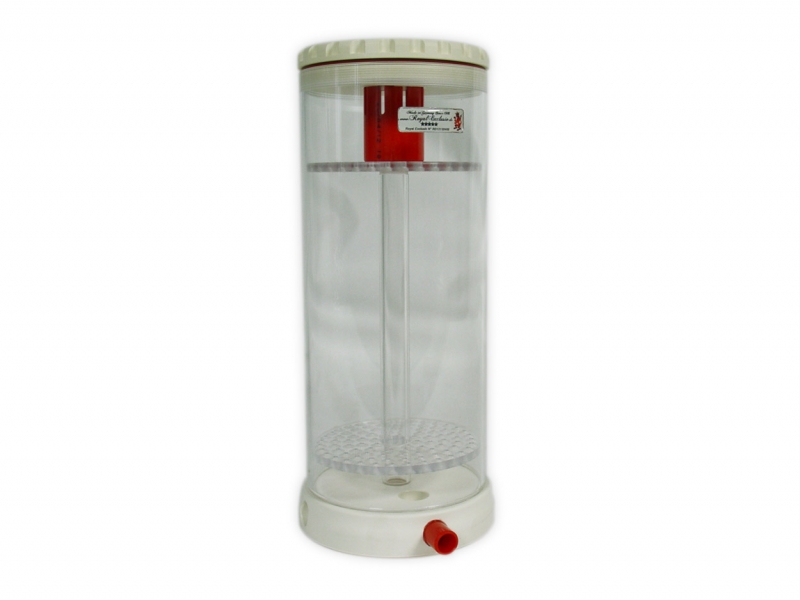

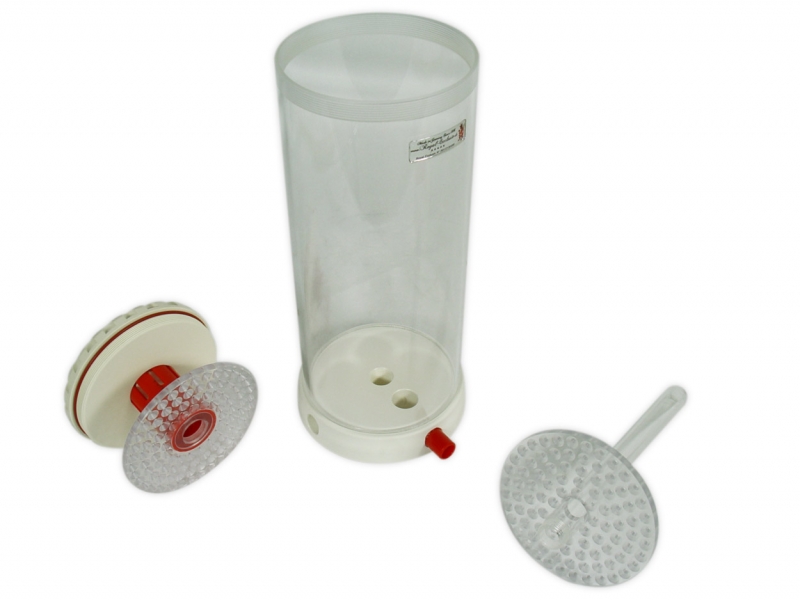

Dreambox - media filter 0.9 gallons (3.5 liter) - SpaceSaver -
Technical data:
Dimensions: Ø 4.92" (125mm) tube x 5.51" (140mm) bottom x ~ 12.99" 330mm height
Volume: ~ 0.9 gallons / 3.4 liters
Media filter made of PVC an high quality acryl-glass / Plexiglas®
The flow rates of the media-filter per hour (recommended):
3.15" (80mm) = 0.4 gallons (1.5l) approx. 132-264 gph (500-1000 l/h)
3.94" (100mm) = 0.5 gallons (2.0l) approx. 264-396 gph (1000-1500 l/h)
4.92" (125mm) = 0.9 gallons (3.5l) approx. 528-660 gph 2000- 2500 l/h
5.91" (150mm) = 1.3 gallons (5.0l) approx. 660-925 gph (2500-3500 l/h)
Example: 4.92" 125mm with a MRD 2500 limited/controlled by of ball valve. So, the motion of the pellets should look like: play video!
Please contact us for checking the installation of your possible media filters for the feasibility.
to upgrade the media filter
Ø 4.92" tube
~ 0.9 gallons / 3.5 liter volume
Filter insert made of foam material for
~ 3.5 liter volume MF
Ø 4.92" / ~ 0.9 gallons
Red Dragon® 3 Mini Speedy pump 50 Watt 1500 l/h
with air and ozon plug
diameter Ø 20 mm
PVC white
diameter Ø 20mm - 0.5"
PVC grey
