Products description
Vlies (Fleece) Dreambox complete filter system - sample - Set 5c USA ///
with skimmer Bubble King® DeLuxe 200 with 50W RD3
with double Media-/Pellet-Filter 125mm and 50W RD3
and with return pump Red Dragon® 3 Speedy 150 Watt / 18,0m³
incl. Cable holder and Cockpit for Controllers

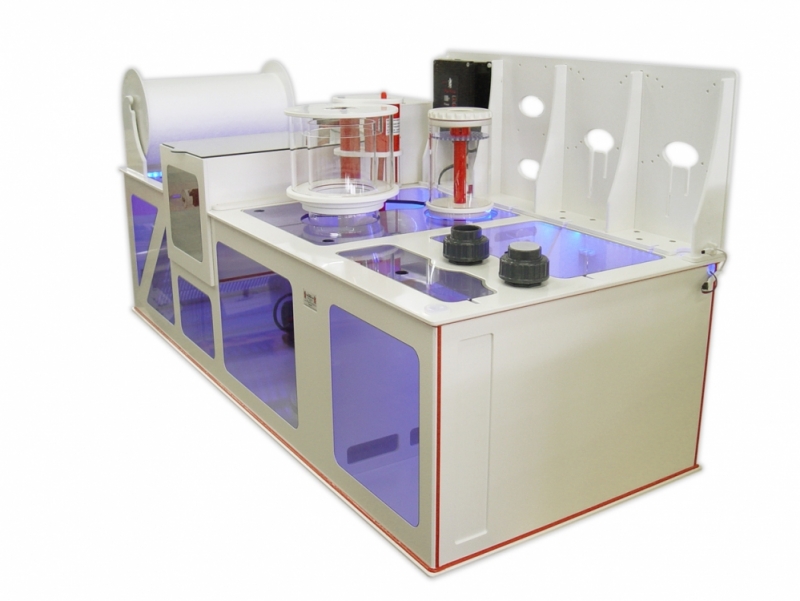

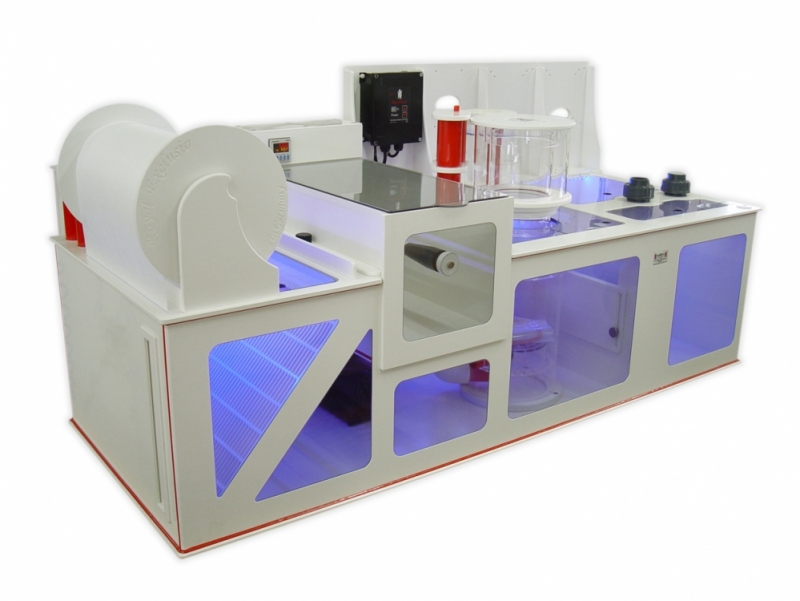

Vlies (Fleece) Dreambox® - filter system size M
Technical data Vlies Dreambox® size M:
Dimensions: 150 cm wide x 60 cm length x 40 cm height
Dimensions: 150 cm wide x 60 cm length x 75 cm height (overall height)
Inlet: 50/40/40/32/32/25mm red pipe
Outlet: 40mm / 1.25“ gray screw connection
Volume: ~ 290 Liter
Fully automatic Vlies (Fleece) roll filter for fresh and saltwater aquariums. The Vlies (Fleece) of Dreambox® 3.0 is made of 8 mm Simona-PVC slides (food safe), fixed from the inside and from the outside and finished with a hot gas welded seam by hand. Equipped with an integrated fleece roll filter, cover completely closed and control unit (Panasonic panel, sensor, drive motor).
- high quality rigid PVC and Plexiglas® (plexiglass)
- hot gas welded not glued,
plastic welding never leak as like glass filter cases with silicone gaskets - significantly sturdily, shock proof and lower weight compared to glass
- 8 mm thickness of PVC and Plexiglas® (plexiglass)
- extremely noise-dampening by construction
- fully prepared for the upgrade with media filters
- Intelligent forced water supply by all chambers
- inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter socks are forwarding into the next Chamber
- Sea-waterproof titanium bolts
- by various options can be upgraded to the high-tech filter tank
- precise CNC milled cover preparation and adaptation for a Royal-Exclusiv® skimmer
- from 100 cm box with oxygen degassing Chamber
- from 60 cm box with water level regulation for skimming Chamber,.
Water level adjustable from 14 cm-23 cm - 100% Made in Germany / Assembly by hand
- with DIN connectors/tubes
- modified 125mm Media- /Pellet-Filter with installation and plumbing
(double, columnar) - 30 Years of experience in PVC filter and skimmer construction
- Roll Vlies (Fleece) Dreambox filter short description: (more details in the data sheet)
* complete fleece control unit filter removable, selectable upward
* baffle has a grip hole in the middle, as well as extra thin fleece coating surfaces
* baffle is embedded in a surrounding frame and can be completely out

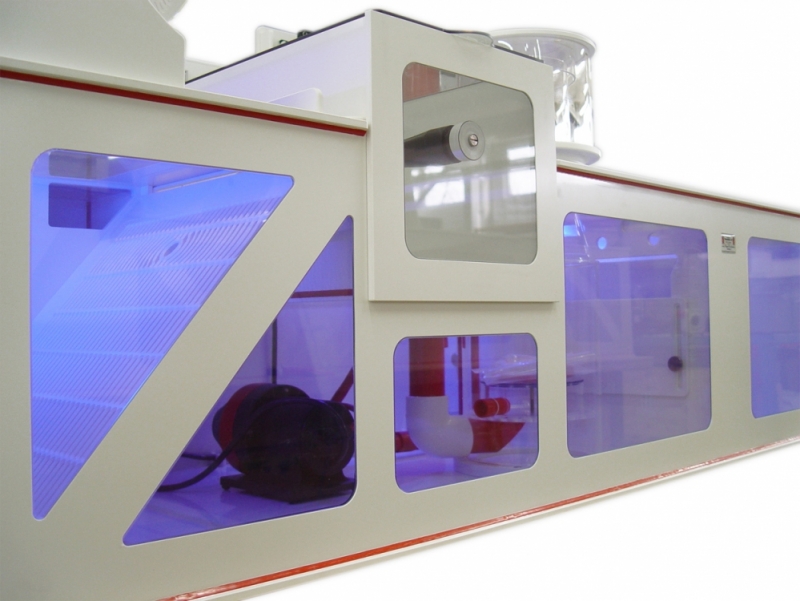

* drying chamber is fully above open, which significantly facilitates the removal and loading of the fleece roll
* drying chamber has an external process
* capacitive non-contact proximity switch on the side monitors the control unit of the motor by means of electronic

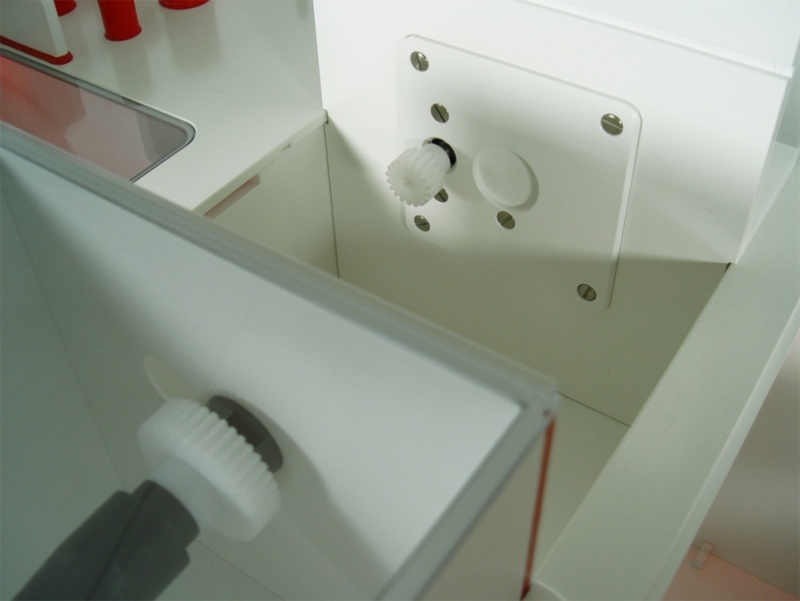

* sophisticated recoiler

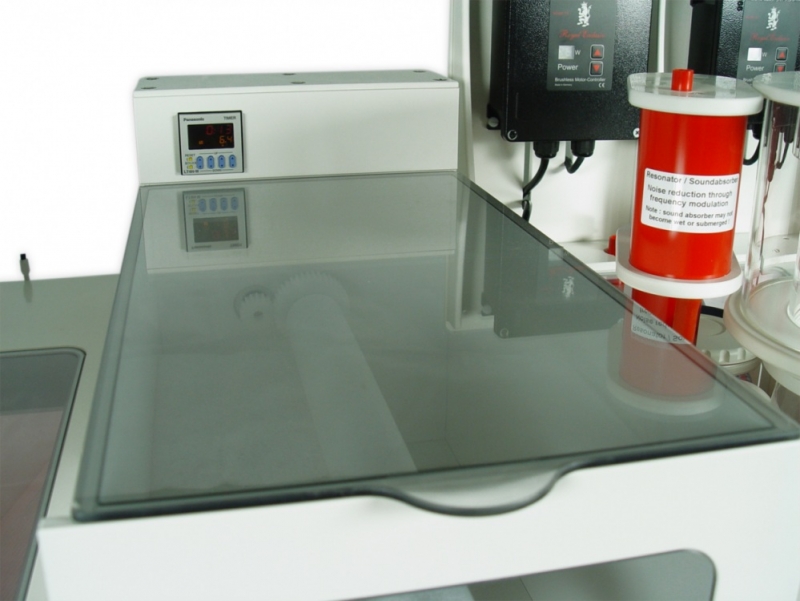

* all components in the chamber of the electronics are mounted on the lid firmly
* 12-volt power supply "Made in Germany"
Data sheet Vlies Dreambox 150_60.pdf Dreamboxes_overview_list.pdf
///////////////////////////////////////////////////////////////////////////////
incl. LED lighting complete
complete with connection cables
installation directly in the Vlies (Fleece) Dreambox , ex factory
possible only when buying new // optional accessories
Technical data:
- flexible LED strip in IP68 execution (protection class). Total power: < 5 Watt
- ready for connection with ballast/transformer 110 volts / AC to 12V / DC
- incl. installation/mounting in Vlies (Fleece) Dreambox from the factory / ex works
- incl. 1 meter cable
- Color: RGB
incl. Cable Holder complete by assembly ex factory / ex works
- high quality rigid PVC
- CNC milled
- for all Nano Dreamboxes / Dreamboxes and Dreambox water tanks
- assembly ex works
- circa 12 pieces (ca. 6 pieces for skimmer-pump, ca. 6 pieces for return-pump)

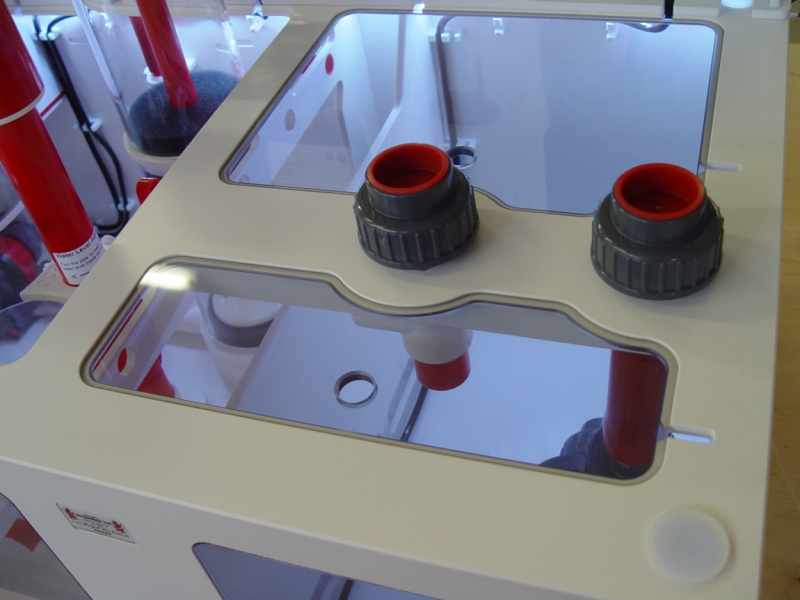

incl. Dreambox milled cover suitable for skimmer Bubble King DeLuxe 200 RD3
- high quality PETG with protection film
- CNC milled
- assembly ex works
incl. Dreambox Cockpit for 3Controllers (triple) with attachment screws
- high quality rigid PVC
- CNC milled
- with plastic screw to determine
- delivery with titanium screws for attaching controller to Dreambox
unit price 4,244.16 USD

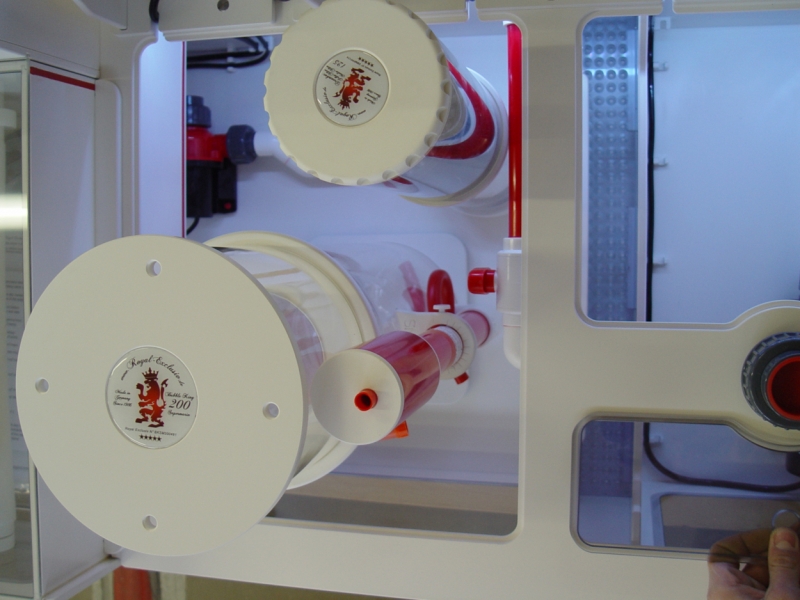

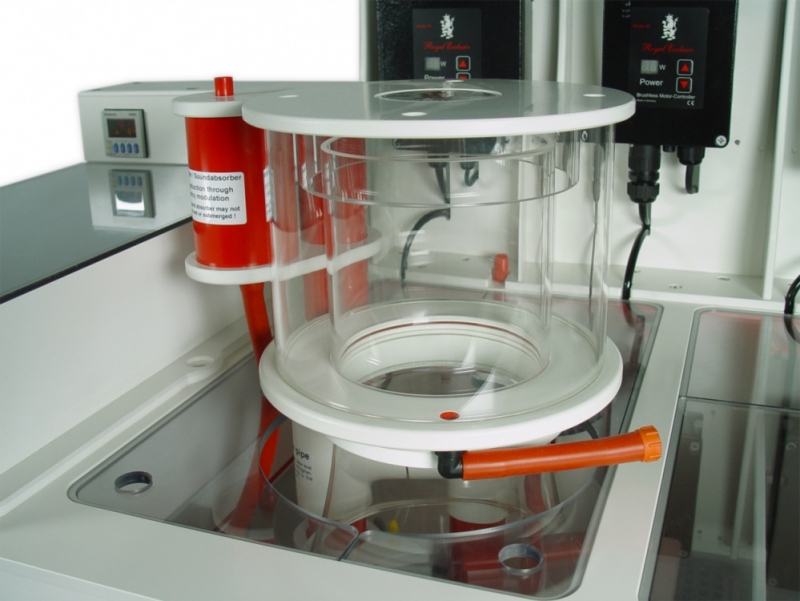

With skimmer Bubble King ® DeLuxe 200 with RD3
for aquariums up to 1.500 liter
hard facts Bubble King® DeLuxe 200 internal:
adjustable Red Dragon® 3 Mini Speedy skimmer pump 50 Watt 1.500 l/h
motor speed adjustable: 400-4000 1/min
Base plate: Ø 25 cm / height ~ 59 cm
Technical data Bubble King® DeLuxe 200 internal:
Water level: ~ 180 mm up to ~ 270 mm
Weight skimmer: 11 kg inclusiv pump
Dimension skimmer: 245 mm wide / 405 mm length / ~ 590 mm height
Red Dragon® 3 Mini Speedy pump 50 Watt / 1500 l/h
Technical data Red Dragon® 3 Mini Speedy pump 50 Watt / 1500 l/h air intake:
max. 50 Watt/h, adjustable 15-50 Watt
speed adjustable Brushless DC pump
Intake side: Nozzle with ozone & air plug
Pressure side: reducing ring Ø 32 mm
Delivery rate: from 150 to max. 1500 l/h air-intake // from 300 to max. 3000 l/h water-intake
Operating voltage: 110 Volt 60 Hz
Protection class pump: IP 68 control unit: IP 66
Weight pump: 3,5 kg
Height of intake side: center 60 mm
Dimension pump: 100 mm wide / 210 mm length / ~ 140 mm height
Dimension control unit: 120 mm wide / 160 mm length / ~ 65 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
- Saltwater resistant M6 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC skimmer-pump with grouted power electronics
- High efficient technology "Made in Germany"
- compact dimensions
- High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
- Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
- Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built according to VDE guidelines
unit price 1,839.93 USD

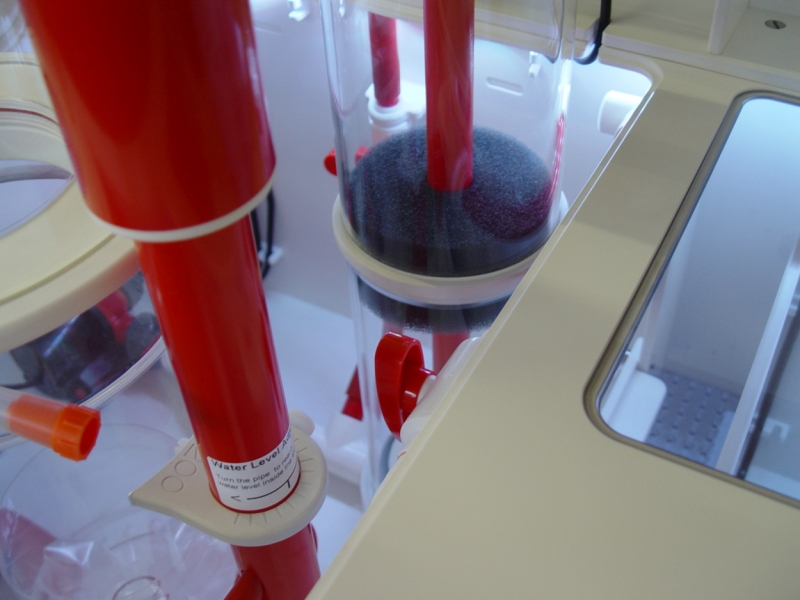

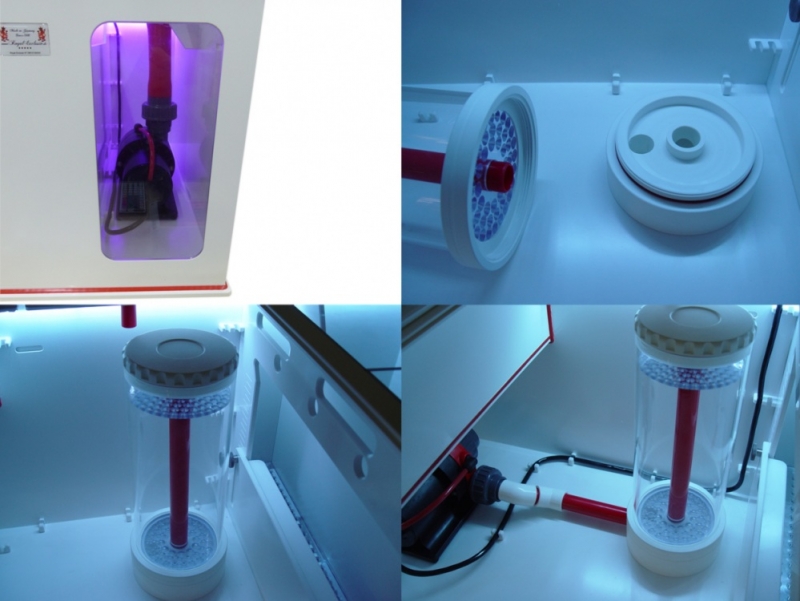

Dreambox - media filter in differ sizes available
+ assembly into Vlies (Fleece) Dreambox, ex works
Technical data:
Double
Ø 125mm(tube) 140mm(buttom) x ~ 580mm height
~ 6 liters volume /// 5,2l (media)
each catrigde ~ 3 liters volume /// 2,6l (media)
PVC/Plexiglass
Media filter made of PVC an high quality acryl-glass / Plexiglas®
- including pipe breakthroughs
outer Ø 25mm - universal usable as media filter for differ medias
- assembly into your Dreambox with internal tubbing/piping and feeding by RD3 with 50W
- high quality rigid PVC and Plexiglas® (plexiglass)
- 100% Made in Germany / assembly by hand
- 30 Years of experience in PVC filter and skimmer construction
unit price 695.05 USD
Red Dragon® 3 Mini Speedy Pump 50 Watt / 1.321 gph / 5,0m³
for feeding of media-filter
Technical data Red Dragon® 3 Mini Speedy Pump 50 Watt / 1.321 gph / 5,0 m³:
50 Watt/h 157.5" (4,0 mtr.) pressure height
speed adjustable Brushless DC pump
Watt- and Percent- Display
intake side 1 1/4" (40 mm) - pressure side 0.75" (25 mm)
operating voltage: 110 Volt 60 Hz
Protection class pump: IP 68 control unit: IP 66
Weight pump: 3,2 kg
Height of intake side: center 2.76" (70 mm)
Dimension pump:
4.33" wide / 8.87" length / ~ 6.30" height
110 mm wide / 200 mm length / ~ 160 mm height
Dimension control unit:
4.72" wide / 6.69" length / ~ 2.56" height
120 mm wide / 170 mm length / ~ 65 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
- Saltwater resistant M6 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless dc-delivery pump with grouted power electronics
- High efficient technology "Made in Germany"
- Inlet and Outlet complete with DIN connection, compact dimensions
- High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
- Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
- Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built according to VDE guidelines
unit price 699.15 USD
Red Dragon® 3 Speedy pump 150 Watt / 4755gph (18m³) AKB anti-lime-bypass
with 10V connection
Technical data Red Dragon® 3 Speedy pump 150 Watt 18,0 m³:
150 Watt/h 226" (5,75 mtr.) pressure height
speed adjustable brushless DC pump
Watt-Display at the controller /// in 2Watt steps adjustable
intake side 1.5" (50 mm) - pressure side 1.25" (40 mm)
operating voltage: 110 Volt 60 Hz
pump and controller with a removeable Hirschmann-plug-connection
Protection class pump: IP 68 control unit: IP 66
Weight pump: 3,5 kg
Weight controller: 1,2kg
Height of intake side: center 70 mm
Dimension pump: ~ 130 mm wide / 290 mm length / 210 mm height
Dimension control unit: ~ 190 mm wide / 168 mm length (250 mm with connection cable) / 84 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
- Saltwater resistant M6 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless dc-delivery pump with grouted power electronics
- High efficient technology "Made in Germany"
- Inlet and Outlet complete with DIN connection, compact dimensions
- High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
- Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
- Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built according to VDE guidelines
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Extensive function integrated in the controller:
1. Food timer
By selecting the menu entry, the pump is reduced to minimum output for a pre-defined period of 1-30 minutes or switched off completely.
2. Manual
>This function enables manual selection of the pump output. The value can be set in increments of 2W (10W). By holding the UP or DOWN key, the highest or lowest possible value is activated (150W/20W).
3. Interval
This function enables changing the pump output in time intervals.
4. Remote 10V
This function activates control via the 10V input.
5. Remote LAN
This function activates the control via the future LAN adapter.
Change functions:
6. Changing food timer
By selecting this change function, the time of the food timer can be pre-set at a range of one minute to 30 minutes (UP/DOWN arrow keys).
7. Changing interval
By selecting this change function, you can enter the interval time.
8. Change clock settings
By selecting this change function, you can set the clock.
9. Change language
By selecting this change function, you can set the menu language. (german/english).
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
The control/connection of Aquarium computer possible!
Prepared for connection to an aquarium computer (E.g. GHL) via a 0-10V interface.
No additional controller needed.
unit price 1,230.41 USD
The Vlies Dreambox will be ready for connection, including all sets of decoupling. ////////////////////////////////////
all-inclusive price: 8,708.70 EUR
7.5% Set discount (purchase of Dreambox + skimmer + return-pump): 8,055.55 EUR
Shipping cost on request
incl. wooden box
