Vlies (Fleece) Dreambox - sample - set 4d - USA

Technical data Vlies Dreambox^® size M:
Dimensions: 150 cm wide x 60 cm length x 40 cm height
Dimensions: 150 cm wide x 60 cm length x 75 cm height (overall height)

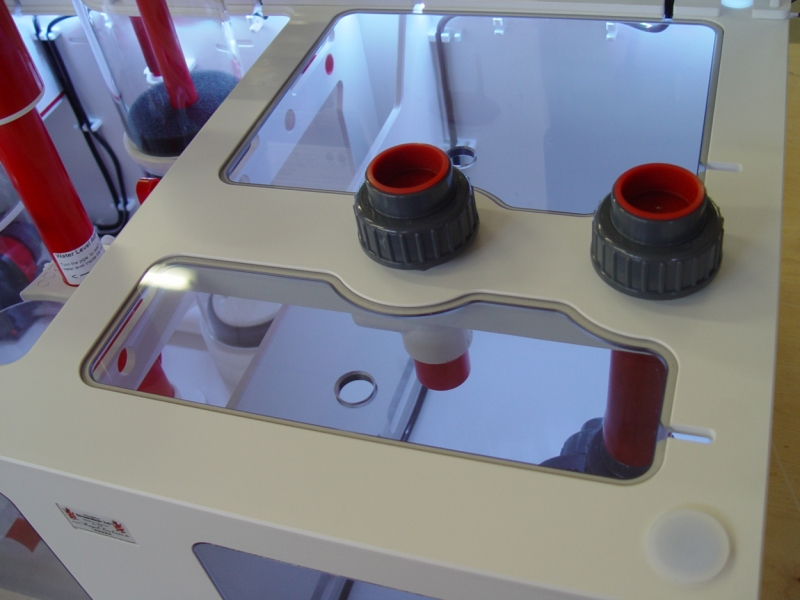

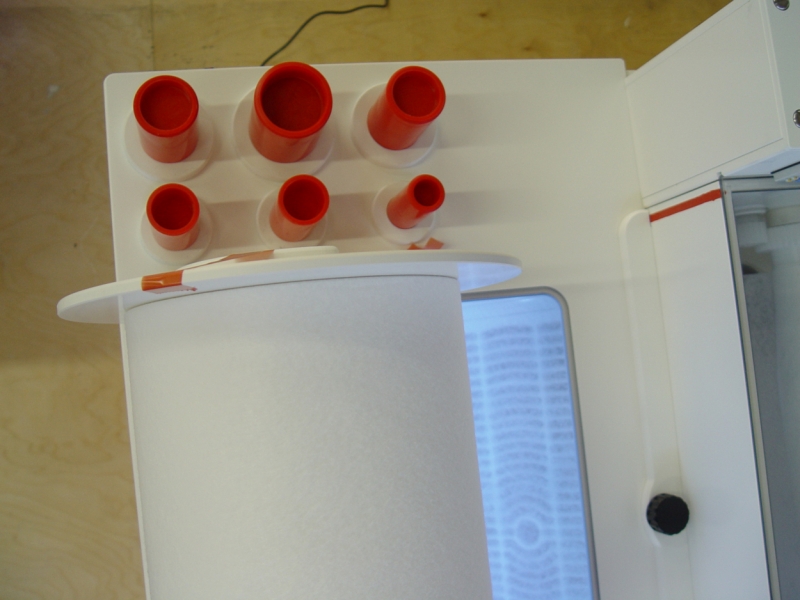

Inlet: 50/40/40/32/32/25mm red pipe
Outlet: 40mm / 1.25“ gray screw connection

Volume: ~  290 Liter

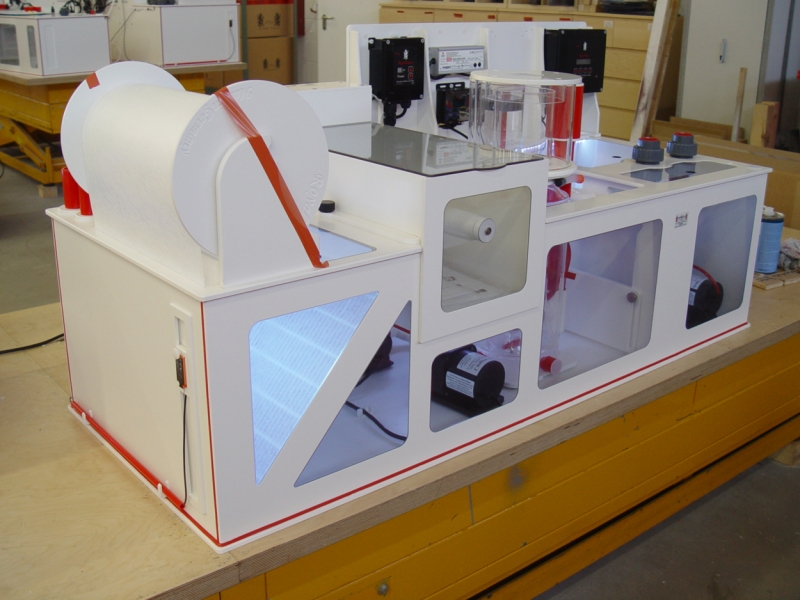

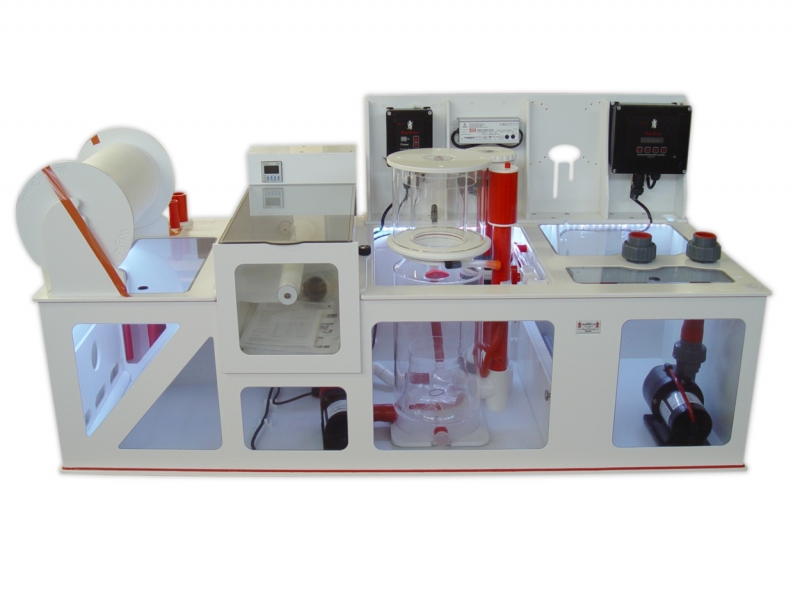

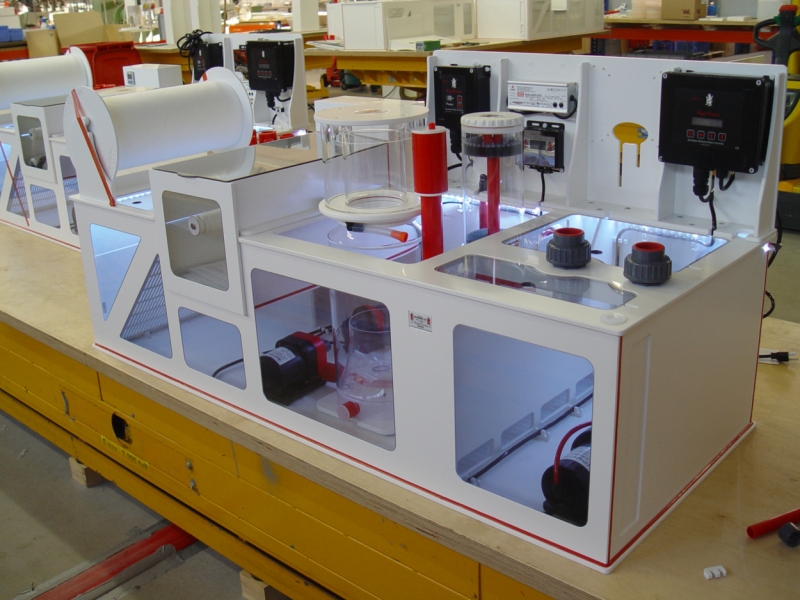

Fully automatic Vlies (Fleece) roll filter for fresh and saltwater aquariums. The Vlies (Fleece) of Dreambox^® 3.0 is made of 8 mm Simona-PVC slides (food safe), fixed from the inside and from the outside and finished with a hot gas welded seam by hand. Equipped with an integrated fleece roll filter, cover completely closed and control unit (Panasonic panel, sensor, drive motor).

• high quality rigid PVC and Plexiglas^® (plexiglass)
• hot gas welded not glued,
  plastic welding never leak as like glass filter cases with silicone gaskets
• significantly sturdily, shock proof and lower weight compared to glass
• 8 mm thickness of PVC and Plexiglas^® (plexiglass)
• extremely noise-dampening by construction
• fully prepared for the upgrade with media filters
• Intelligent forced water supply by all chambers
• inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter socks are forwarding into the next Chamber
• Sea-waterproof titanium bolts
• by various options can be upgraded to the high-tech filter tank

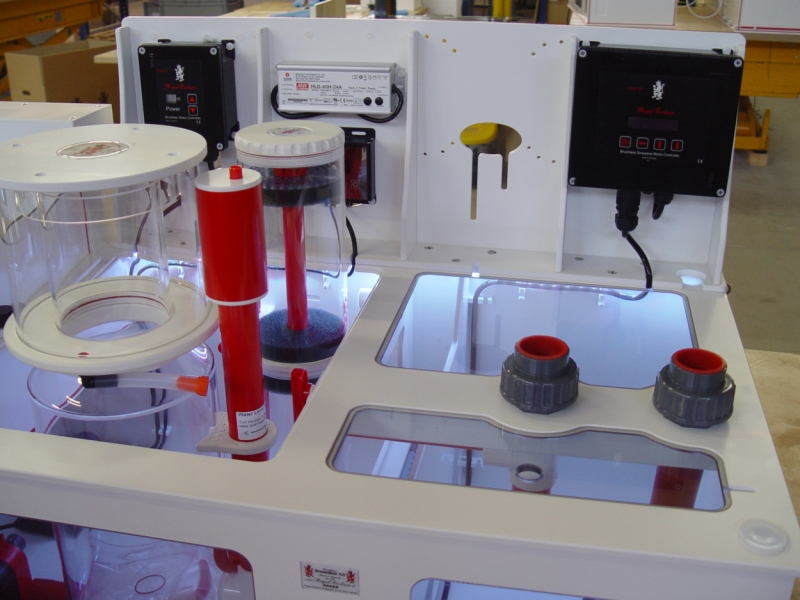

• precise CNC milled cover preparation and adaptation for a Royal-Exclusiv^® skimmer
• from 100 cm box with oxygen degassing Chamber
• from 60 cm box with water level regulation for skimming Chamber,.
  Water level adjustable from 14 cm-23 cm
• 100% Made in Germany / Assembly by hand
• with DIN connectors/tubes

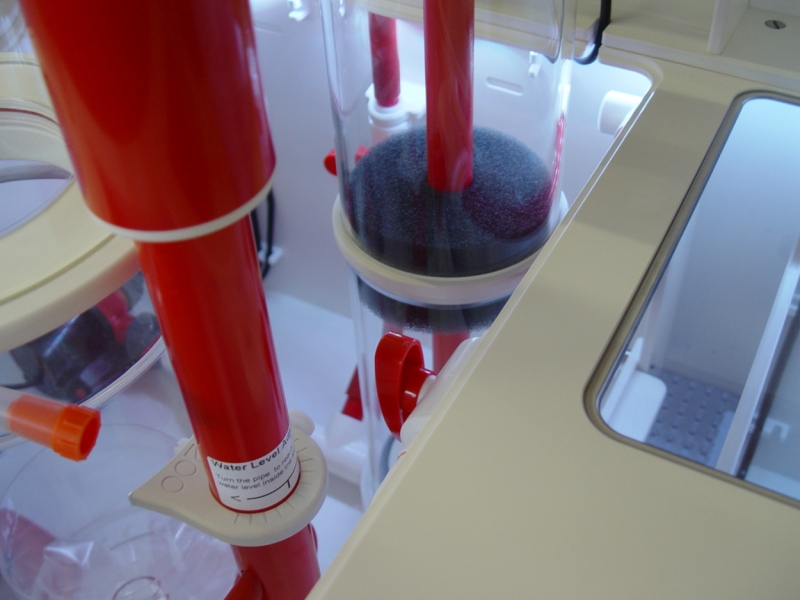

• modified 125mm Media- /Pellet-Filter with installation and plumbing
  (double, columnar)
• 30 Years of experience in PVC filter and skimmer construction

• Roll Vlies (Fleece) Dreambox filter short description: (more details in the data sheet)
  * complete fleece control unit filter removable, selectable upward
  * baffle has a grip hole in the middle, as well as extra thin fleece coating surfaces
  * baffle is embedded in a surrounding frame and can be completely out
  * drying chamber is fully above open, which significantly facilitates the removal and loading of the fleece roll
  * drying chamber has an external process
  * capacitive non-contact proximity switch on the side monitors the control unit of the motor by means of electronic

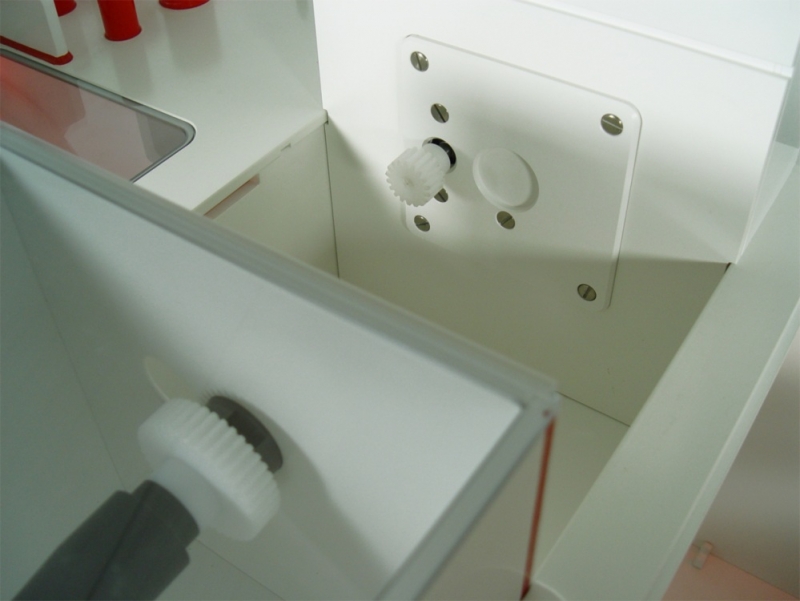

  * sophisticated recoiler
  * all components in the chamber of the electronics are mounted on the lid firmly
  * 12-volt power supply "Made in Germany"

  Data sheet Vlies Dreambox 150_60.pdf   Dreamboxes_overview_list.pdf

///////////////////////////////////////////////////////////////////////////////
incl. LED lighting complete

complete with connection cables
installation directly in the Vlies (Fleece) Dreambox , ex factory
possible only when buying new // optional accessories

Technical data:

• flexible LED strip in IP68 execution (protection class). Total power: < 5 Watt
• ready for connection with ballast/transformer 110 volts / AC to 12V / DC
• incl. installation/mounting in Vlies (Fleece) Dreambox from the factory / ex works
• incl. 1 meter cable
• Color: RGB

  incl. Cable Holder complete by assembly ex factory / ex works

• high quality rigid PVC
• CNC milled
• with plastic screw to determine
• delivery with titanium screws for attaching controller to Dreambox

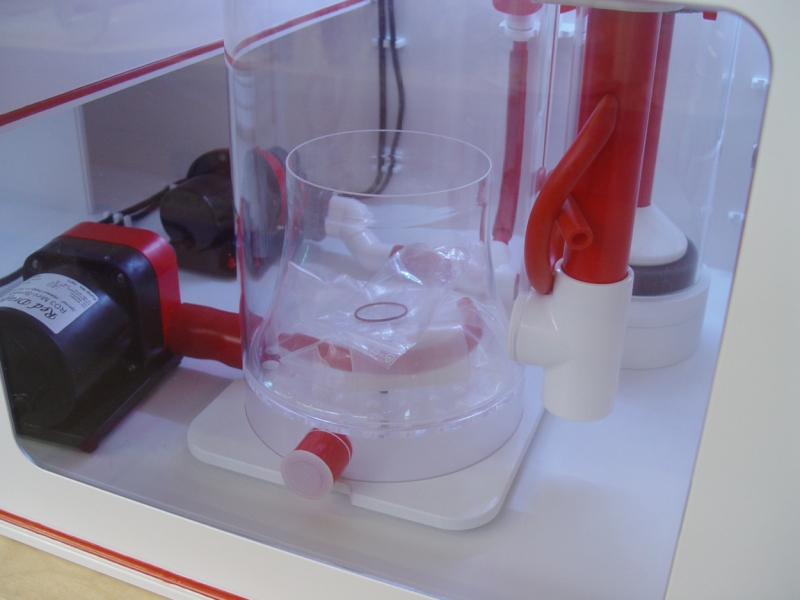

hard facts Bubble King^® Supermarin 200 RD3 internal:
adjustable Red Dragon^® 3  Mini Speedy skimmer pump 50 Watt   396 gph Air (1.500 l/h)
Motor speed adjustable: 400-4000 1/min
Base plate: 8.66ʺ x 8.66ʺ / height ~ 24.41ʺ (22 cm x 22 cm / height ~ 62 cm)

Red Dragon^® 3 Mini Speedy pump 50 Watt / 1500 l/h

Technical data  Red Dragon^® 3 Mini Speedy pump 50 Watt / 1500 l/h air intake:
max. 50 Watt/h, adjustable 15-50 Watt
speed adjustable Brushless DC pump
Intake side: Nozzle with ozone & air plug
Pressure side: reducing ring Ø 32 mm
Delivery rate: from 150 to max. 1500 l/h air-intake // from 300 to max. 3000 l/h water-intake
Operating voltage: 110 Volt 60 Hz
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,5 kg
Height of intake side: center 60 mm
Dimension pump: 100 mm wide / 210 mm length / ~ 140 mm height
Dimension control unit: 120 mm wide / 160 mm length / ~ 65 mm height

  Data_sheet_and_spare_parts.pdf     Operating_and_maintenance_manual.pdf

• Saltwater resistant M6 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless DC skimmer-pump with grouted power electronics
• High efficient technology "Made in Germany"
• compact dimensions
• High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
• Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
• Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
• Heavy and massive craftsmanship against vibrations and oscillation
• CE conformity, developed and built according to VDE guidelines

with 10V connection

Technical data  Red Dragon^® 3 Speedy pump 150 Watt 18,0 m³:
150 Watt/h 226" (5,75 mtr.) pressure height
speed adjustable brushless DC pump
Watt-Display at the controller /// in 2Watt steps adjustable
intake side 1.5" (50 mm) - pressure side 1.25" (40 mm)
operating voltage: 110 Volt 60 Hz
pump and controller with a removeable Hirschmann-plug-connection
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,5 kg
Weight controller: 1,2kg
Height of intake side: center 70 mm
Dimension pump: ~ 130 mm wide / 290 mm length / 210 mm height
Dimension control unit: ~ 190 mm wide / 168 mm length (250 mm with connection cable) / 84 mm height

  Data_sheet_and_spare_parts.pdf     Operating_and_maintenance_manual.pdf

• Saltwater resistant M6 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless dc-delivery pump with grouted power electronics
• High efficient technology "Made in Germany"
• Inlet and Outlet complete with DIN connection, compact dimensions
• High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
• Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
• Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
• Heavy and massive craftsmanship against vibrations and oscillation
• CE conformity, developed and built according to VDE guidelines
