Products description

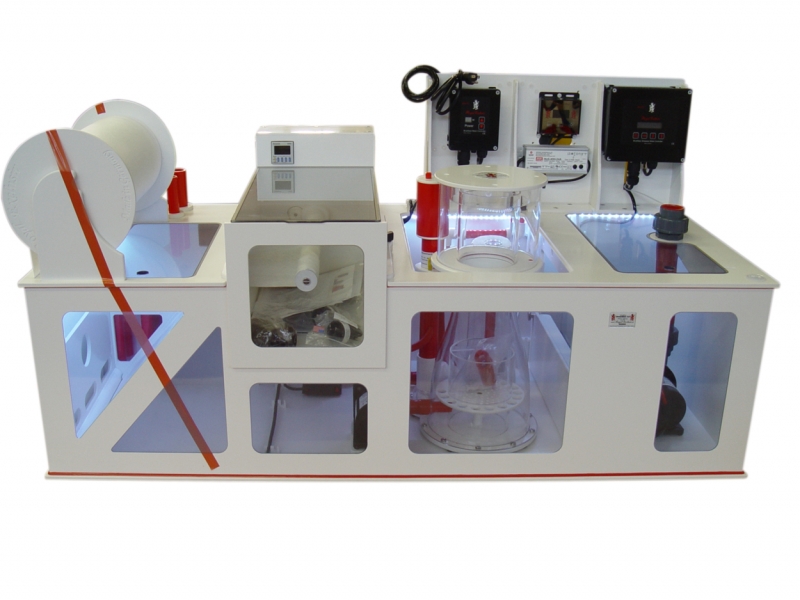

Vlies (Fleece) Dreambox complete filter system - sample - Set 4c USA ///
with skimmer Bubble King® Double Cone 200 with 50W RD3
with single Media-/Pellet-Filter 125mm and 25W RD5 ECO
and with return pump Red Dragon® 3 Speedy 150 Watt / 18,0m³
incl. Cable holder and Cockpit for Controllers

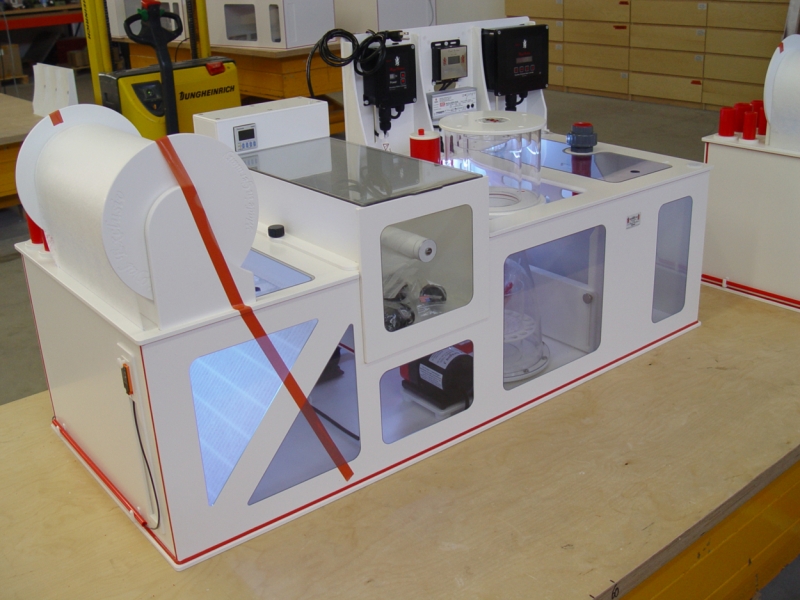

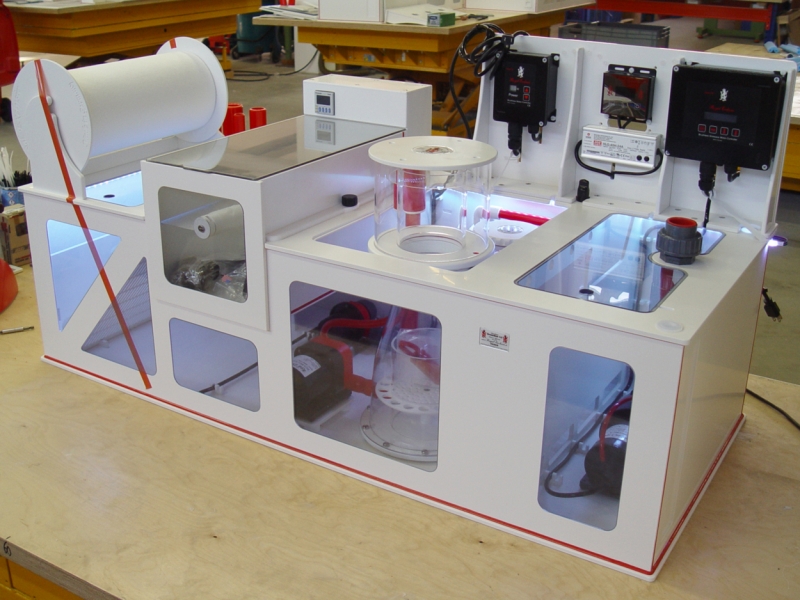

Vlies (Fleece) Dreambox® - filter system size S/M
Technical data Vlies Dreambox® size S:
Dimensions: 140 cm wide x 60 cm length x 40 cm height
Dimensions: 140 cm wide x 60 cm length x 75 cm height (overall height)
Volume: ~ 270 Liter
Fully automatic Vlies (Fleece) roll filter for fresh and saltwater aquariums. The Vlies (Fleece) of Dreambox® 3.0 is made of 8 mm Simona-PVC slides (food safe), fixed from the inside and from the outside and finished with a hot gas welded seam by hand. Equipped with an integrated fleece roll filter, cover completely closed and control unit (Panasonic panel, sensor, drive motor).
- high quality rigid PVC and Plexiglas® (plexiglass)
- hot gas welded not glued,
plastic welding never leak as like glass filter cases with silicone gaskets - significantly sturdily, shock proof and lower weight compared to glass
- 8 mm thickness of PVC and Plexiglas® (plexiglass)
- extremely noise-dampening by construction
- fully prepared for the upgrade with media filters
- Intelligent forced water supply by all chambers
- inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter socks are forwarding into the next Chamber
- Sea-waterproof titanium bolts
- by various options can be upgraded to the high-tech filter tank
- precise CNC milled cover preparation and adaptation for a Royal-Exclusiv® skimmer
- from 100 cm box with oxygen degassing Chamber
- from 60 cm box with water level regulation for skimming Chamber,.
Water level adjustable from 14 cm-23 cm - 100% Made in Germany / Assembly by hand
- with DIN connectors/tubes
- modified 125mm Media- /Pellet-Filter installation and plumbing
(single, columnar) - 30 Years of experience in PVC filter and skimmer construction
- Roll Vlies (Fleece) Dreambox filter short description: (more details in the data sheet)
* complete fleece control unit filter removable, selectable upward
* baffle has a grip hole in the middle, as well as extra thin fleece coating surfaces
* baffle is embedded in a surrounding frame and can be completely out

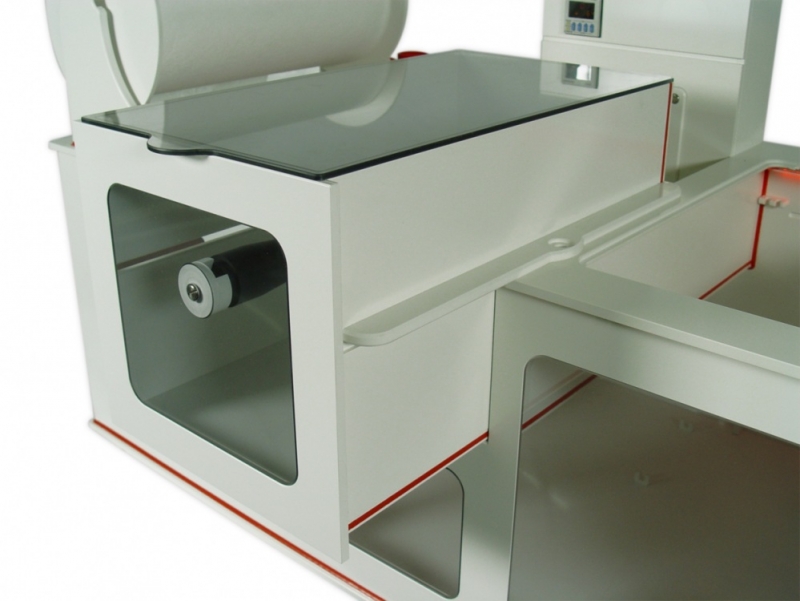

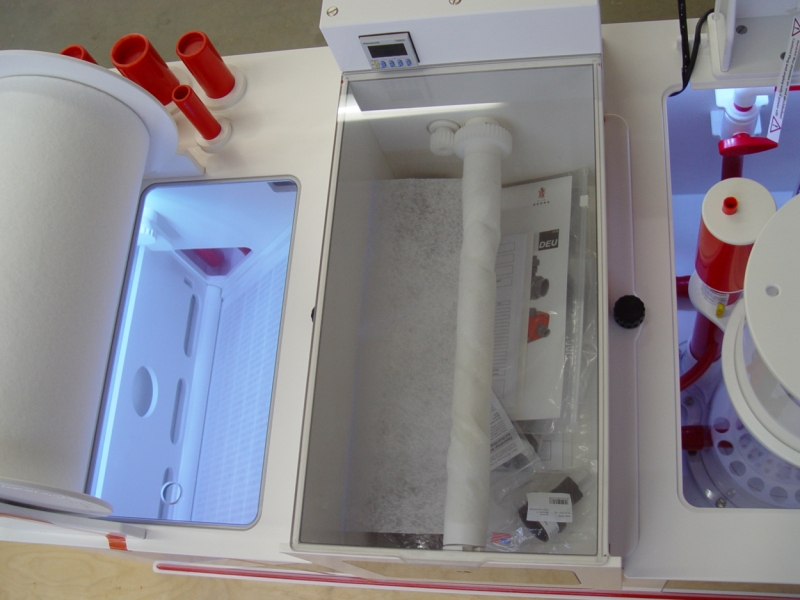

* drying chamber is fully above open, which significantly facilitates the removal and loading of the fleece roll
* drying chamber has an external process
* capacitive non-contact proximity switch on the side monitors the control unit of the motor by means of electronic

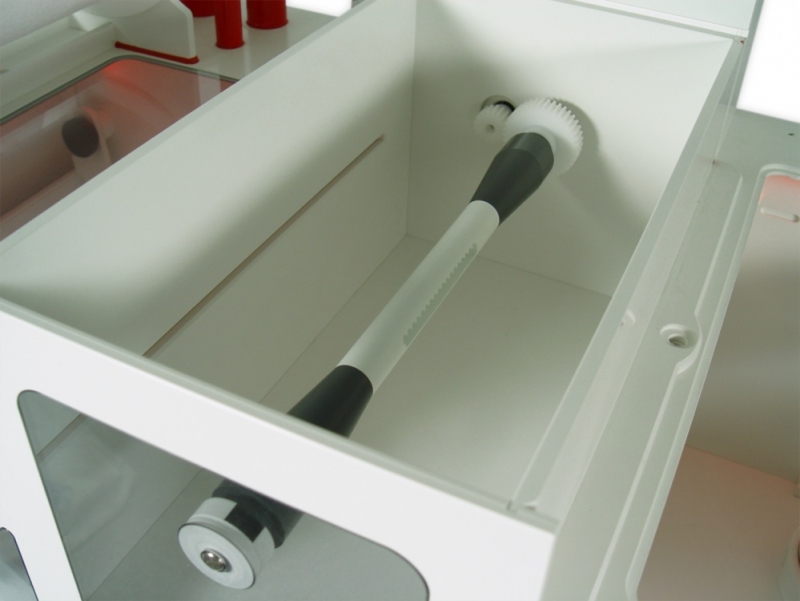

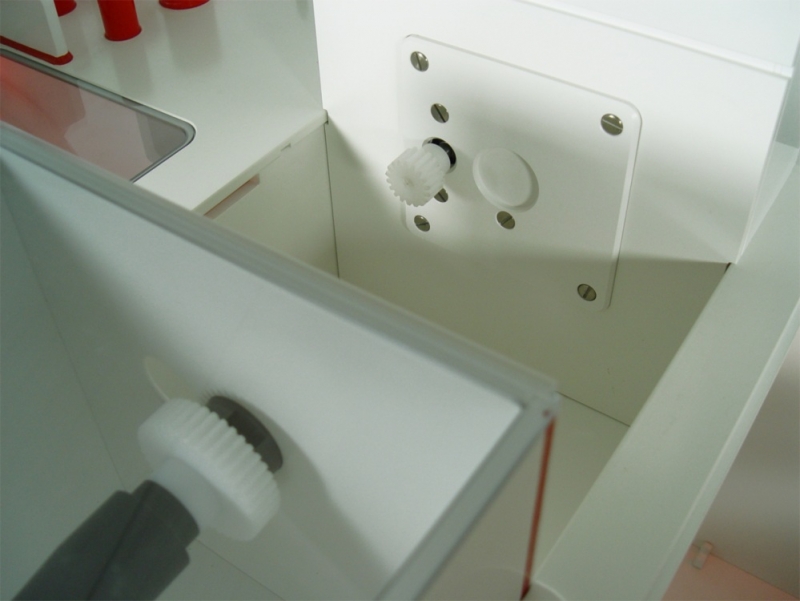

* sophisticated recoiler
* all components in the chamber of the electronics are mounted on the lid firmly
* 12-volt power supply "Made in Germany"
Data sheet Vlies Dreambox 130_60.pdf Dreamboxes_overview_list.pdf
///////////////////////////////////////////////////////////////////////////////
incl. LED lighting complete
complete with connection cables
installation directly in the Vlies (Fleece) Dreambox , ex factory
possible only when buying new // optional accessories
Technical data:
- flexible LED strip in IP68 execution (protection class). Total power: < 5 Watt
- ready for connection with ballast/transformer 110 volts / AC to 12V / DC
- incl. installation/mounting in Vlies (Fleece) Dreambox from the factory / ex works
- incl. 1 meter cable
- Color: RGB

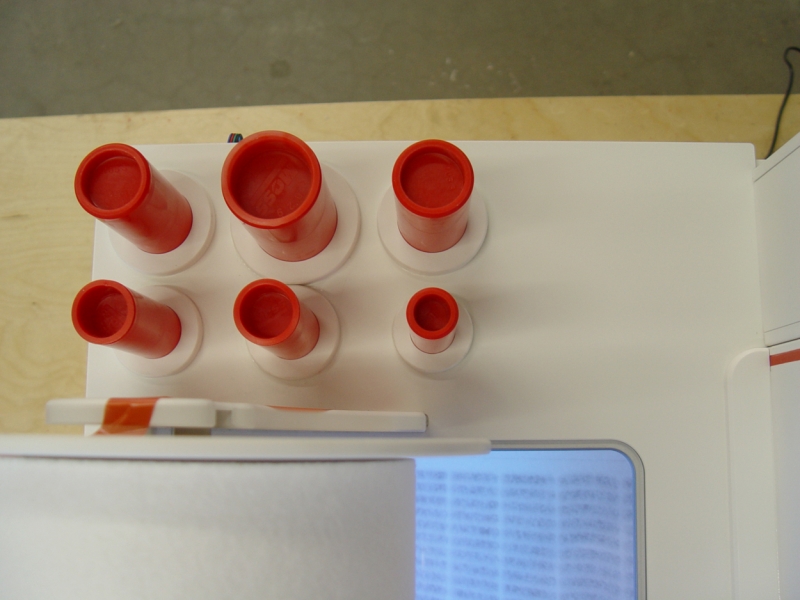

incl. Cable Holder complete by assembly ex factory / ex works
- high quality rigid PVC
- CNC milled
- for all Nano Dreamboxes / Dreamboxes and Dreambox water tanks
- assembly ex works
- circa 12 pieces (ca. 6 pieces for skimmer-pump, ca. 6 pieces for return-pump)

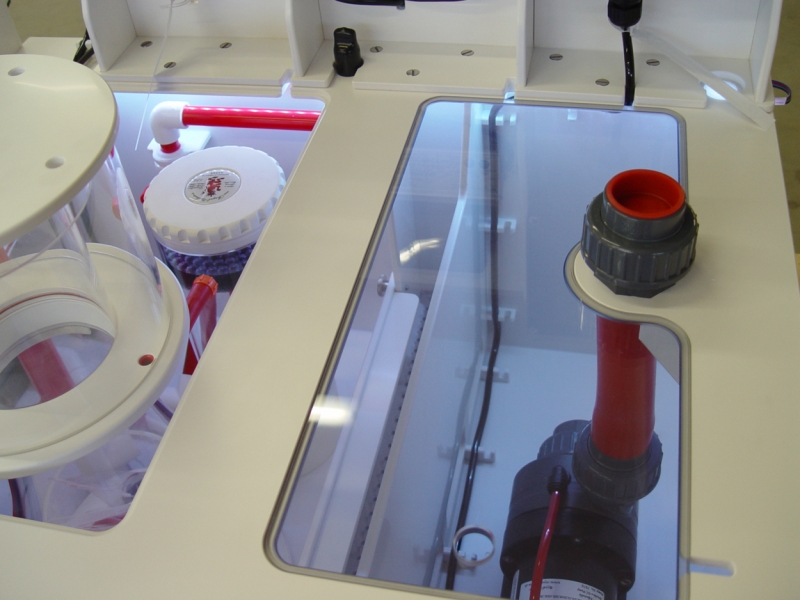

incl. Dreambox milled cover suitable for skimmer Bubble King Double Cone 200 RD3
- high quality PETG with protection film
- CNC milled
- assembly ex works

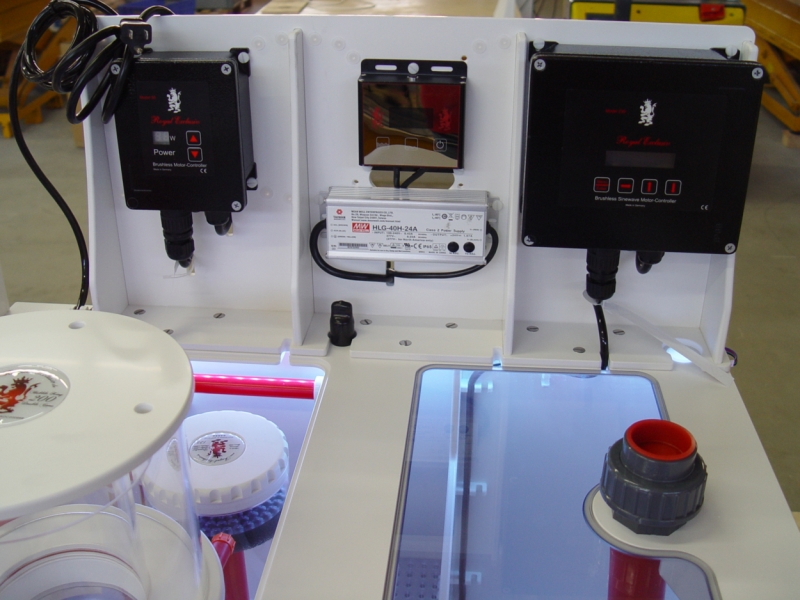

incl. Dreambox Cockpit for 3Controllers (triple) with attachment screws
- high quality rigid PVC
- CNC milled
- with plastic screw to determine
- delivery with titanium screws for attaching controller to Dreambox
unit price 3,940.02 USD
With skimmer Bubble King ® Double Cone 200 with RD3
for aquariums/tanks up to 264 gallons (1000 liter)
hard facts Bubble King®Double Cone 200 RD3:
adjustable Red Dragon® 3 Mini Speedy skimmer pump 50 Watt 396 gph (1.500 l/h)
Motor speed adjustable: 400-4000 1/min
Base plate: 9.84ʺ x 12.60ʺ / height ~ 21.65ʺ (25 cm x 32 cm / height ~ 55 cm)
Technical data Bubble King® Double Cone 200 RD3:
396 gph Air - 793 gph Water = 1 Red Dragon® 3 Mini Speedy pump 50 Watt
max. 50 Watt/h, adjustable 15-50 Watt // speed adjustable Brushless DC pump
Delivery rate adjustable: max. ~ 396 gph (1.500 l/h) Air and max. ~ 793 gph (3.000 l/h) Water inlet
wattage - active power: P = min. 15 Watt/h - max. 50 Watt/h
operating voltage: 110 Volt 60 Hz (also in 230V/50Hz available)
Protection class: IP 68
Water level: ~ 5.12ʺ up to ~ 9.84ʺ (~ 130 mm up to ~ 250 mm)
Weight skimmer: 7 kg inclusiv pump
Dimension skimmer without pump:
9.84ʺ wide / 12.60ʺ length / ~ 21.65ʺ height
Dimension skimmer with pump:
12.60ʺ wide / 15.75ʺ length / ~ 21.65ʺ height
Dimension skimmer without pump:
250 mm wide / 320 mm length / ~ 550 mm height
Dimension skimmer with pump:
320 mm wide / 400 mm length / ~ 550 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf RD3_Data_sheet_and_spare_parts.pdf RD3_Operating_and_maintenance_manual.pdf
unit price 1,182.36 USD
Dreambox - media filter in differ sizes available
+ assembly into Vlies (Fleece) Dreambox, ex works
Technical data:
Single
Ø 125mm(tube) 140mm(buttom) x ~ 355mm height
~ 3,5 liter /// 2,7l (media)
PVC/Plexiglass
Media filter made of PVC an high quality acryl-glass / Plexiglas®
- including pipe breakthroughs
outer Ø 25mm - universal usable as media filter for differ medias
- assembly into your Dreambox with internal tubbing/piping and feeding by RD5 with 25W
- high quality rigid PVC and Plexiglas® (plexiglass)
- 100% Made in Germany / assembly by hand
- 30 Years of experience in PVC filter and skimmer construction
unit price 695.05 USD
Red Dragon® 3 ECO pump 25 Watt / 4,0m³ / 24V
for feeding of media-filter/reactor
Technical data Red Dragon® 5 ECO pump 25 Watt 4,0 m³:
25 Watt/h 2,5 mtr. pressure height
Speed adjustable Brushless DC pump
Watt-, Power consumption and Revolution per minute (rpm) - Display
Adjustable in 2-watt-steps from 2W up to 25W
Intake side 32 mm (1") - pressure side 25 mm (0.75")
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 1,0 kg
Height of intake side: center 60 mm
Dimension pump: 100 mm wide / 170 mm length / ~ 155 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height
Operating_and_maintenance_manual.pdf
- Saltwater resistant M5 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built
- quality power supply from "Mean Well"
- high quality touchscreen display with a lot extra functions
(protection against dry-running, over heating, over voltage, blocking etc.) - 10V connection/controlling with 3.5mm TS-connector (phone jack)
unit price 449.00 USD
Red Dragon® 3 Speedy pump 150 Watt / 4755gph (18m³) AKB anti-lime-bypass
with 10V connection
for the returning to the tank
Technical data Red Dragon® 3 Speedy pump 150 Watt 18,0 m³:
150 Watt/h 226" (5,75 mtr.) pressure height
speed adjustable brushless DC pump
Watt-Display at the controller /// in 2Watt steps adjustable
intake side 1.5" (50 mm) - pressure side 1.25" (40 mm)
operating voltage: 110 Volt 60 Hz
pump and controller with a removeable Hirschmann-plug-connection
Protection class pump: IP 68 control unit: IP 66
Weight pump: 3,5 kg
Weight controller: 1,2kg
Height of intake side: center 70 mm
Dimension pump: ~ 130 mm wide / 290 mm length / 210 mm height
Dimension control unit: ~ 190 mm wide / 168 mm length (250 mm with connection cable) / 84 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
- Saltwater resistant M6 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless dc-delivery pump with grouted power electronics
- High efficient technology "Made in Germany"
- Inlet and Outlet complete with DIN connection, compact dimensions
- High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
- Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
- Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built according to VDE guidelines
unit price 1,178.00 USD
The Vlies Dreambox will be ready for connection, including all sets of decoupling. ////////////////////////////////////
all-inclusive price: 7,444.43 EUR
7.5% Set discount (purchase of Dreambox + skimmer + return-pump): 6,886.10 EUR
Shipping cost on request
incl. wooden box
